STOPKiT® VESSEL

STOPKIT® VESSEL is a repair system for tank and pressure vessel able to seal a leak online in few minutes.

ONLINE LEAK SEALING SOLUTION
FOR EMERGENCY TANK AND PRESSURE VESSEL REPAIR

Product Sheet

Considered as an emergency repair, STOPKiT® VESSEL is a stop leak solution for pressure vessel and tank. It is the most efficient repair system applicable under pressure. This unique and revolutionary concept, patented by 3X ENGINEERING (3X), allows to fix high pressure leaks by tightening. Installation can be done without shutting down the line pressure.

The tank/ pressure vessel surface must be without sharp edges, but the system can be applied on irregularity like welding wire or corrosion cankers, so it’s the best system to repair damaged and leaking tank/ pressure vessel.

This product has a large range of performance: it can stop a leak up to 30 bars on pressure vessels and tanks operating up to +80°C, from 1.5m to 3.5m diameters in onshore and offshore environments.

Uses

  • Emergency and temporary repair for leaking tank / pressure vessel

Applications

  • Onshore / Offshore
  • Suitable on vertical / horizontal tank, pressure vessel
  • Compatible with most common fluids and gas
  • Diameter from 1.5m to 3.5 m (58’’ to 138’’)
  • Temperature from –20°C to +80°C (-4°F to + 176°F)

Benefits

  • Installation in less than 10 minutes (2 persons)
  • No additional load on pipe (light product)
  • Online sealing (no shutdown required)
  • Ready-to-use and easy to store
  • Reusable
  • Shelf-life: 5 years

STOPKiT® VESSEL Concept

The system operates by concentrating all the needed stress in the tank at the defect location. The hoop stress needed to stop the leak is brought by the technical strap and the screws. The high-performance fibers of the strap are temperature and stress resistant.
pressure vessel repair solution

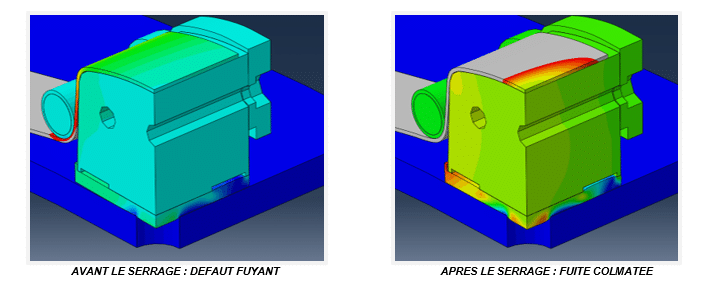

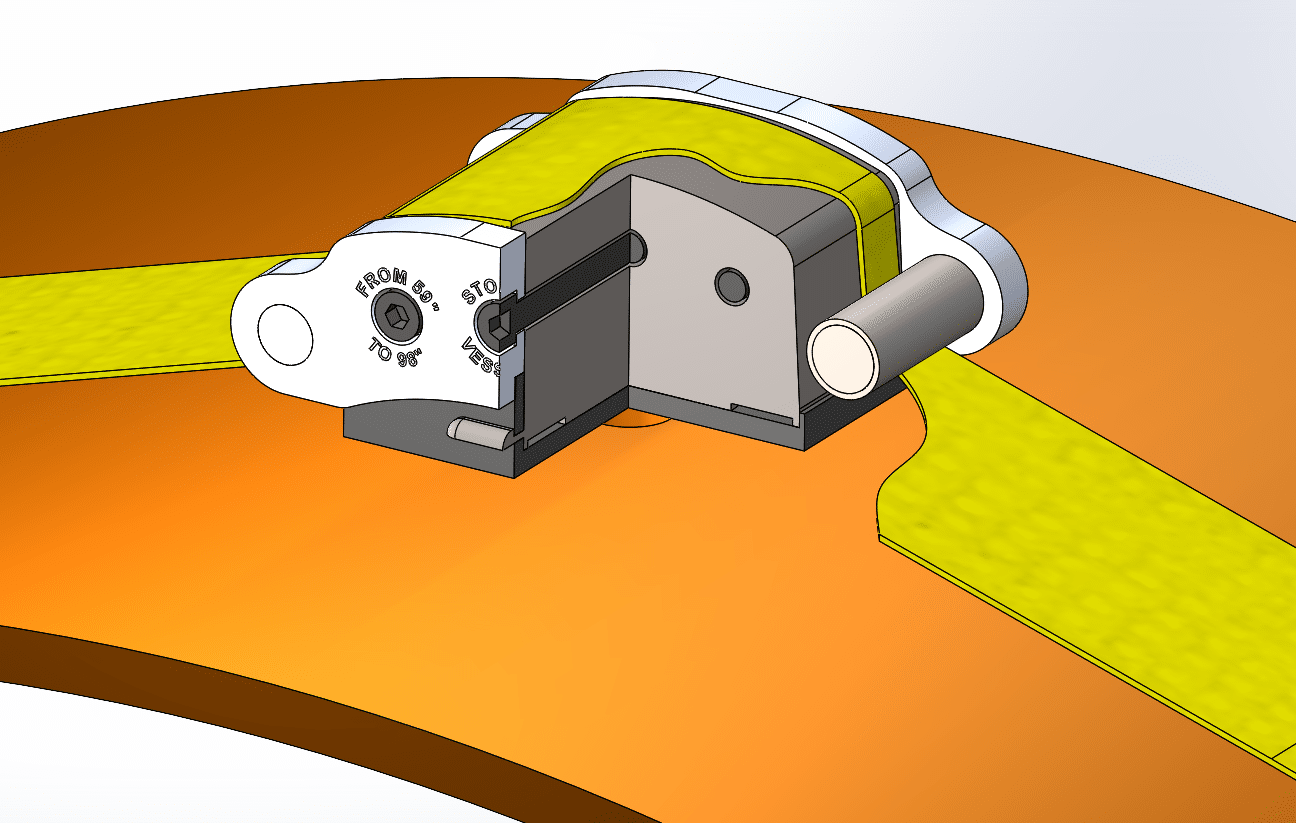

When the screws are tightened, the strap transfers the strain to the technical rubber patch in order to get the imperviousness. In fact, tightening the screws will induce a tension force in the belt, and this will perform the radial force on the leak point via the applicator. The applicator adds a tension force component to the radial force, then the distributor increases the pressure locally with the ribs and the containment grooves, as a stress concentrator, on the sealing pad.

STOPKiT® VESSEL COMPONENTS

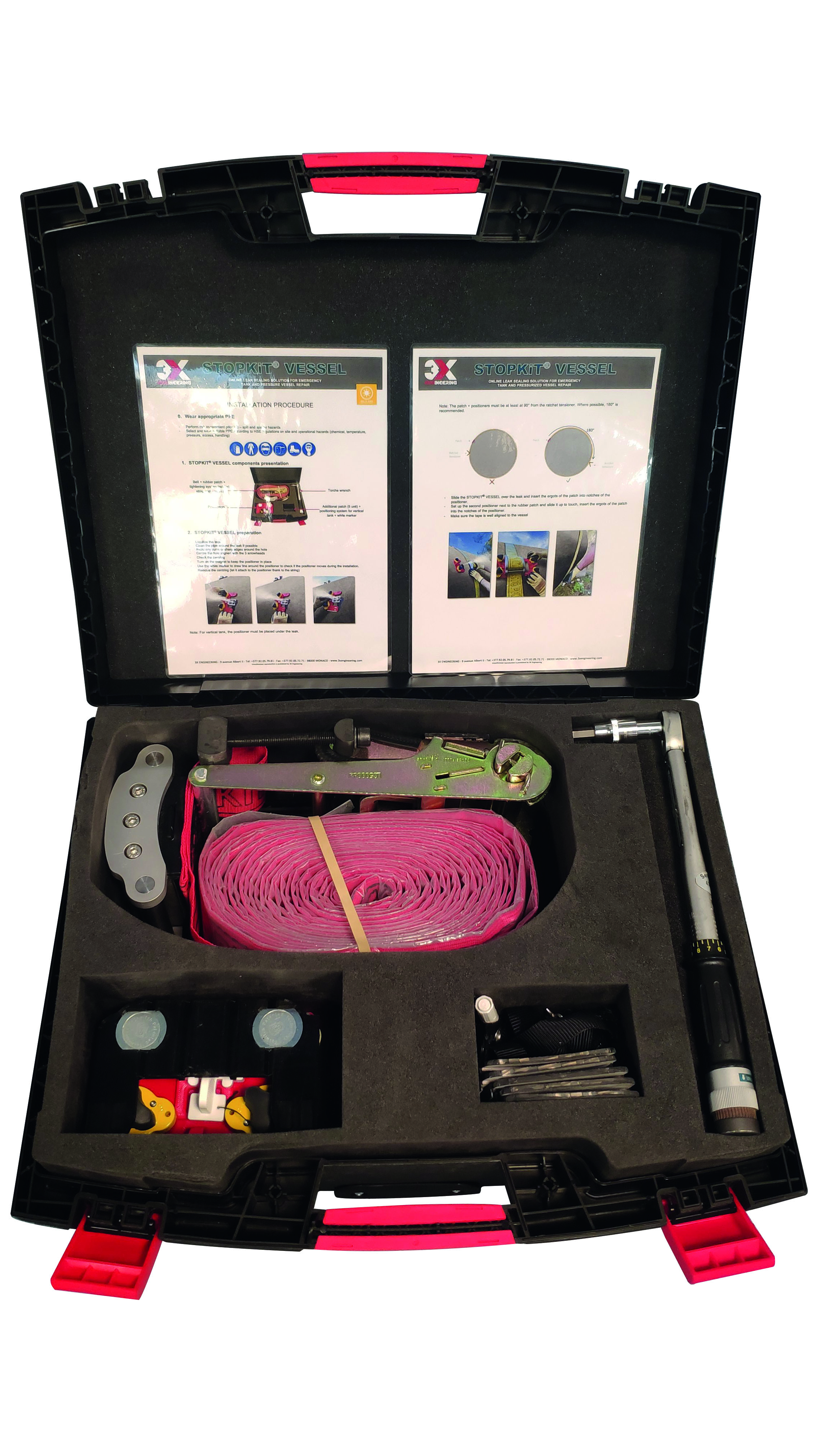

  • 1 belt + tightening system (ratchet strap and screws)
  • 1 rubber Patch 100mmx100mm
  • 1 torque wrench
  • 2 positioners and 1 centerer
  • additional patch (5 units)
  • 1 White marker
  • 6 magnets and tightening system for vertical tank (strip + magnets)
  • 1 protective canvas large dimension (for the belt + tightening system)
  • Installation procedure

Depending on tank diameter, the length of belt is subject to change. Do not modify the composition of the STOPKiT® VESSEL for quality purpose. Do not try to adapt a STOPKiT® VESSEL on another tank / pressure vessel diameter than mentioned on the packaging.

STOPKiT® VESSEL versions can be used in most environments: Onshore and Offshore. Because the environment is more aggressive in offshore conditions, the composition of the belt and the tightening system is slightly different to make it more resistant.

TECHNICAL SPECIFICATIONS FOR STOPKiT® VESSEL ONSHORE (2.5m & 3.5m)

STOPKiT® VESSEL ONSHORE version is dedicated for onshore environment such as refinery or inland tank.

The color of the belt is yellow.

DENOMINATION STOPKiT® VESSEL 2.5 STOPKiT® VESSEL 3.5
USE ONSHORE ENVIRONMENT – EMERGENCY REPAIR
TANK DIAMETER From 1.5m to 2.5m (58’’ to 98’)’ From 2.5m to 3.5m (99’’ to 138’’)
MIN. TEMPERATURE -20°C / -4°F
MAX. TEMPERATURE +80°C / +176°F
PATCH SIZE 100mm x 100mm
MAXIMUM DEFECT SIZE Ø≤ 40mm
MAXIMUM PRESSURE 30 bars / 435 psi

TECHNICAL SPECIFICATIONS FOR STOPKiT® VESSEL OFFSHORE (2.5m & 3.5m)

STOPKiT® VESSEL OFFSHORE version is dedicated for offshore environment such as platform in harsh environment.

The belt of this STOPKiT® VESSEL is not only lighter and more flexible but is also very resistant to water/sea water. It will improve the long-term product efficiency. The color of the belt is red.

DENOMINATION STOPKiT® VESSEL 2.5 STOPKiT® VESSEL 3.5
USE OFFSHORE ENVIRONMENT – EMERGENCY REPAIR
TANK DIAMETER From 1.5m to 2.5m (58’’ to 98’)’ From 2.5m to 3.5m (99’’ to 138’’)
MIN. TEMPERATURE -20°C / -4°F
MAX. TEMPERATURE +80°C / +176°F
PATCH SIZE 100mm x 100mm
MAXIMUM DEFECT SIZE Ø≤ 40mm
MAXIMUM PRESSURE 30 bars / 435 psi

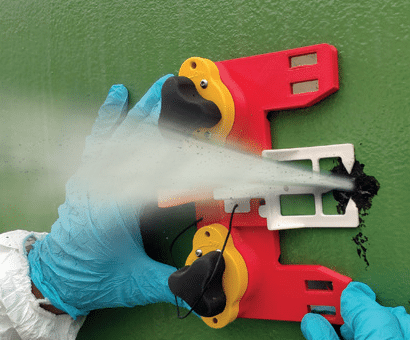

Set-up the 1st part of the positioner

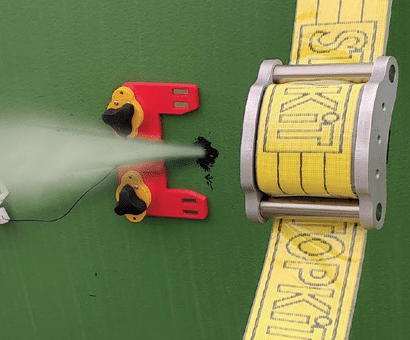

Install the STOPKIT© VESSEL and slide it over the leak

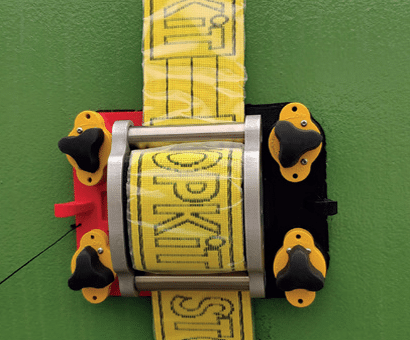

Set-up the 2nd part of the positioner

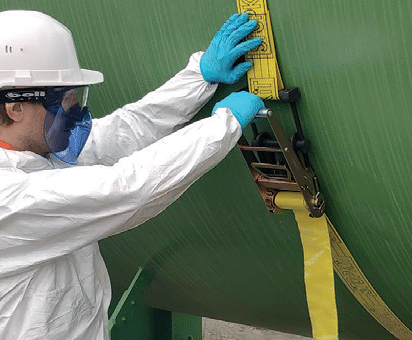

Tighten using ratchet system and the strength of your arms as much as possible

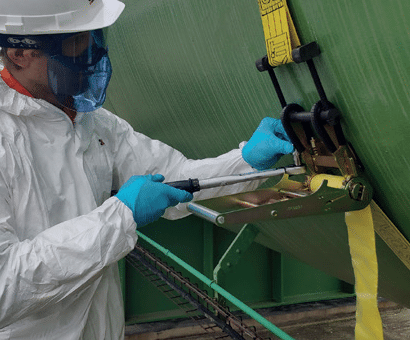

Tighten with torque wrench until the leak is sealed

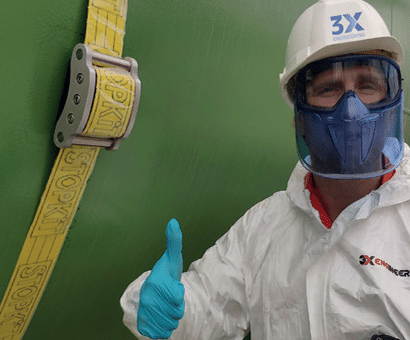

Remove the positioner, roll the belt and fix it to the ratchet tensioner

For STOPKiT® VESSEL installation on vertical pressure vessel, an additional step using magnet system for fi xing the belt is necessary (between steps 1 and 2)

IMPLEMENTATION BY TRAINED AND CERTIFIED APPLICATORS ONLY
