ROLLERKiT®

ROLLERKIT® is a preventive and curative repair system for corrosion under support (CUS), for new and old installations.

PROTECTIVE COMPOSITE SOLUTION
FOR CORROSION UNDER PIPE SUPPORT (CUS)

ROLLERKiT^® is a preventive and curative repair system for corrosion under support (CUS), for new and old installations.

It can be installed on pipe, on support or on composite wrapping depending on the level of corrosion.

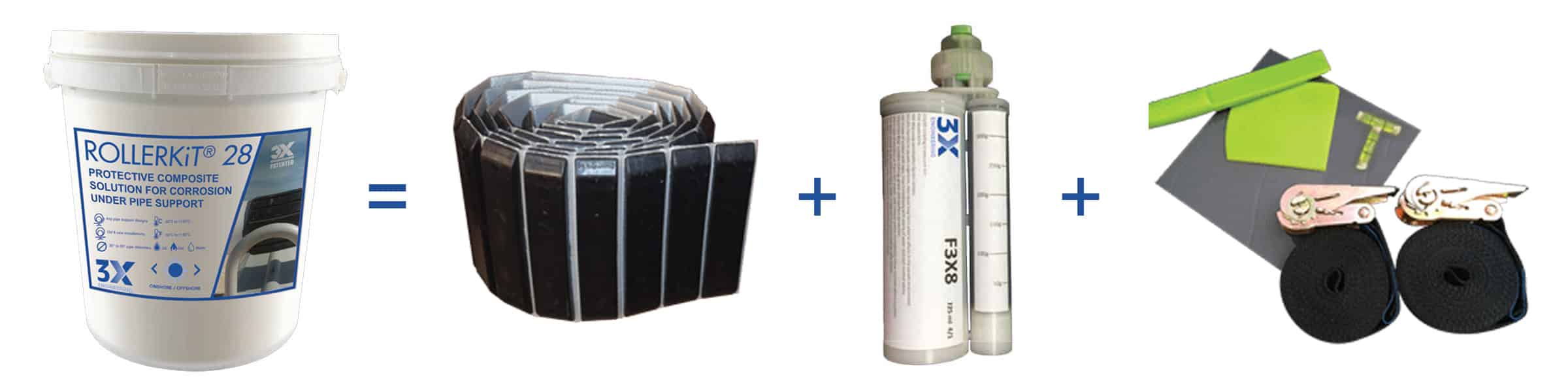

ROLLERKiT^® is made of high polymer pads thermo-welded on glass fiber fabric and specific epoxy resin. Pads are designed to support the weight of the pipe according to ASME B31.1. Glass fiber fabric ensures the pads assembly, and applied with the resin on a corroded structure, it will stop the corrosion.

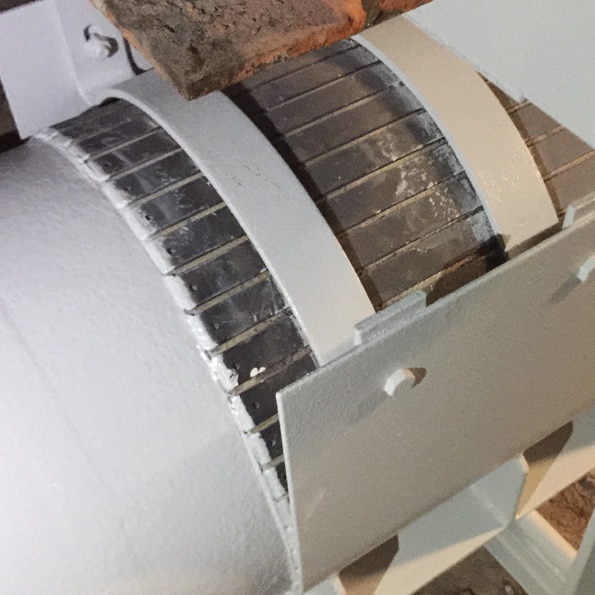

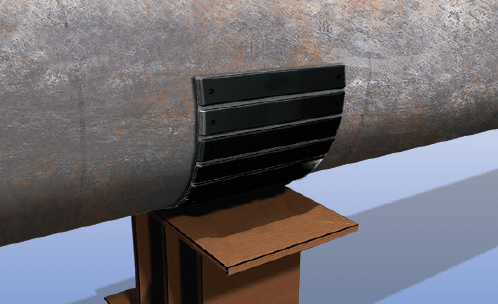

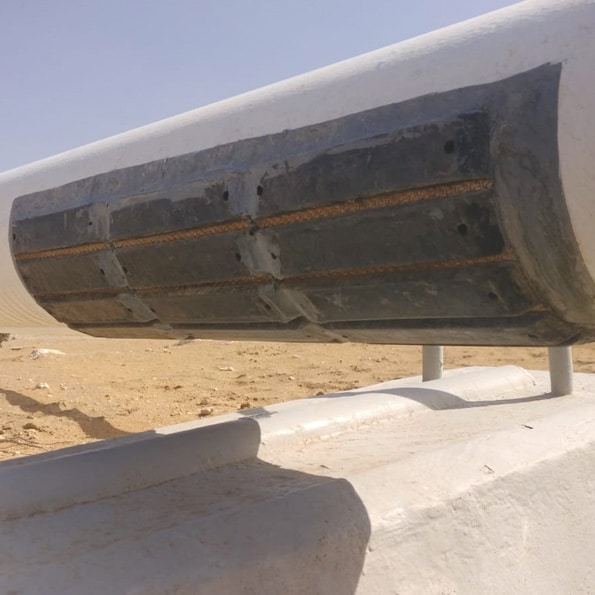

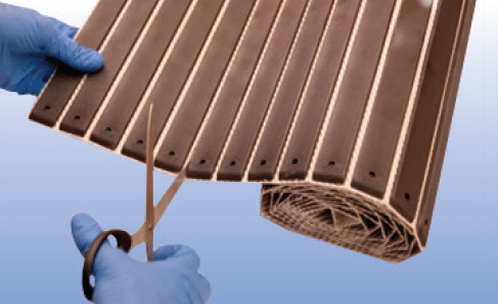

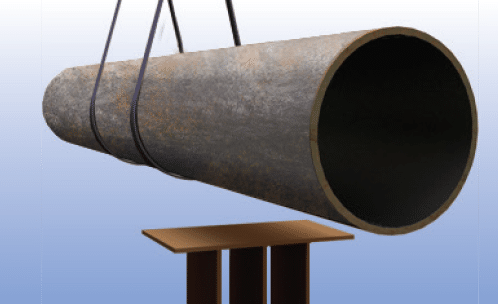

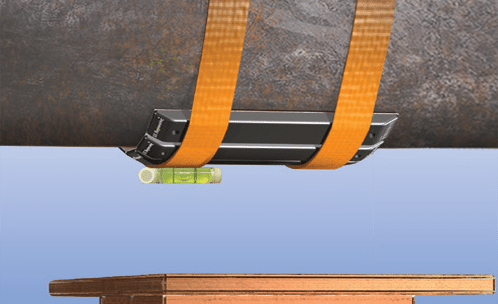

ROLLERKiT^® on pipe

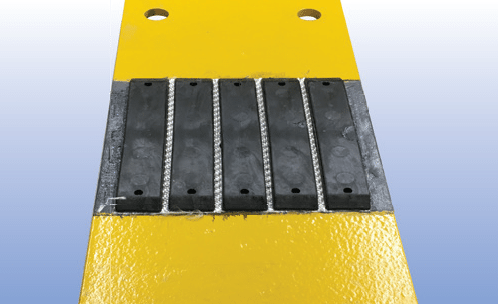

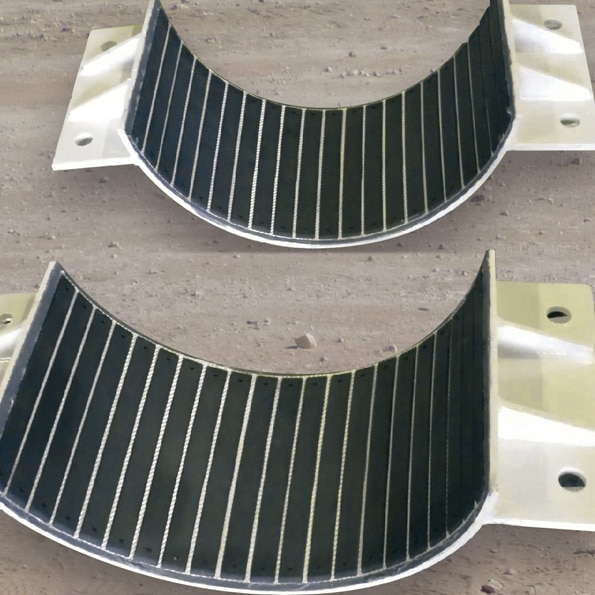

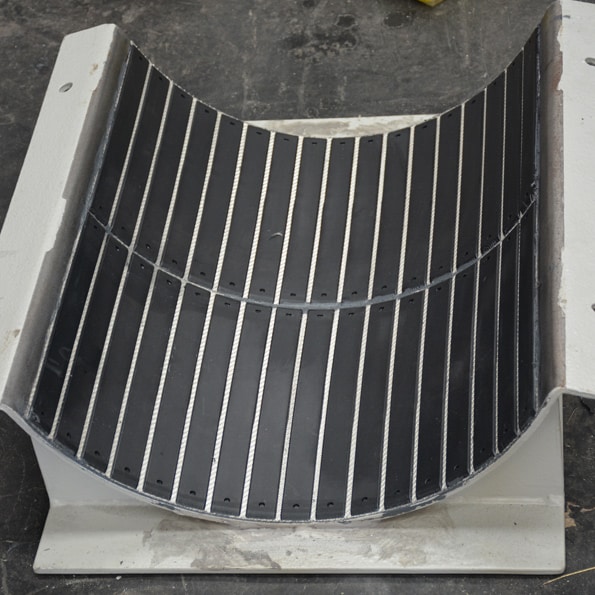

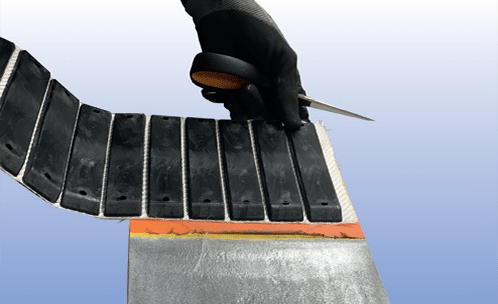

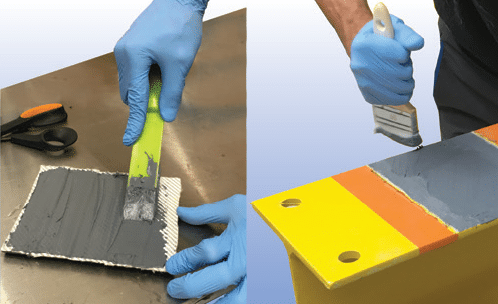

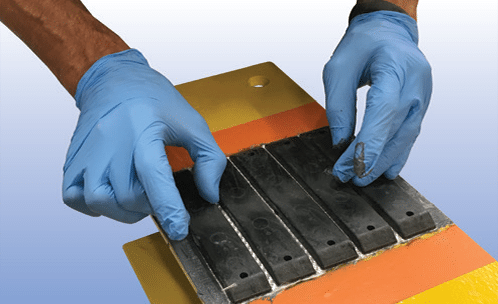

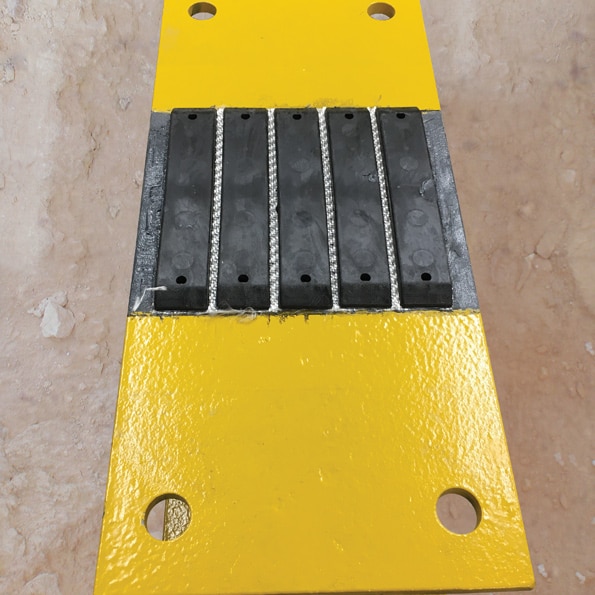

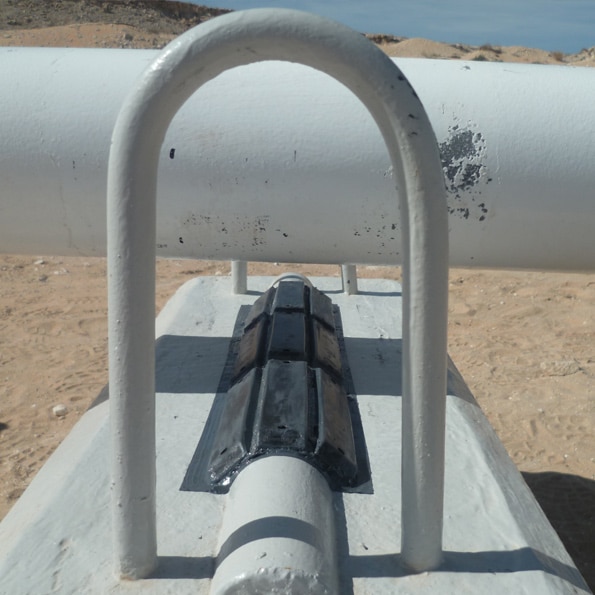

ROLLERKiT^® on Support

Uses

Avoid contact between trapped water and pipe support
Avoid galvanic corrosion
Avoid catastrophic failures caused by crevice corrosion
Eliminate and prevent from further corrosion at pipe support
Protect from impacts

Applications

Onshore and Offshore
Old and new installations
Any pipe support designs
Pipe diameters from 4″ to 56″
Pipe temperature from -30°C to +150°C (-22°F to +302°F)

Benefits

Long-term service lifetime
Non-metallic solution
Pipe integrity preserved
Installation on pipe or on support
Dual use: preventive & curative system

Model	Pipe O.D. (inch)	Application	Temperatures	Resin	Length/Width/Thickness (mm)
ROL-28	4″ to 28″	Onshore & Offshore topside	-30°C/+150°C (-22°F/+302°F)	F3X8	Roll of 3000 x 160 x 8
ROL-56	30″ to 56″	Onshore & Offshore topside	-30°C/+150°C (-22°F/+302°F)	F3X8	Roll of 3000 x 300 x 12
