REINFORCEKiT® PATCH
REINFORCEKIT® PATCH is a wet lay-up patching repair system designed to reinforce tanks and pressure vessels, restore original asset integrity and prevent further deterioration.
REINFORCEKiT® PATCH is a lasting reinforcement solution for damaged tanks and pressured vessels suffering from internal and external corrosion defects.
This product is tailor-made for each repair and requires engineering and calcluations according to ISO 24.817, ASME PCC-2 and API 653.

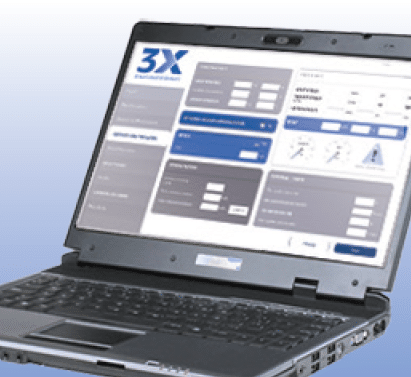

REINFORCEKiT® PATCH is made of Kevlar® patches and 3X bi-component epoxy resin. The dimensions and number of patches, the type and quantity of resin will depend on the defect and will be defined using 3X software.
Onshore / Offshore Topside
External corrosion
Internal corrosion
Through wall defect,
Leak, Hole
Mechanical damage,
Dent, Crack…
Uses
- Restore tank original integrity
- Reinforce damaged tank area
- Prevent further corrosion or deterioration
Applications
- Onshore and offshore installations
- All tank designs and sizes
- Service temperature up to +150°C (+302°F)
- Compatible with most common fluid and gas
Benefits
- Online repair (no loss of production)
- Versatile product with a large range of applications (storage and GRP tanks, pressure vessels, separators, columns)
- Long-term repair (up to 20 years for external defect)
- No limitation in pressure and defect size

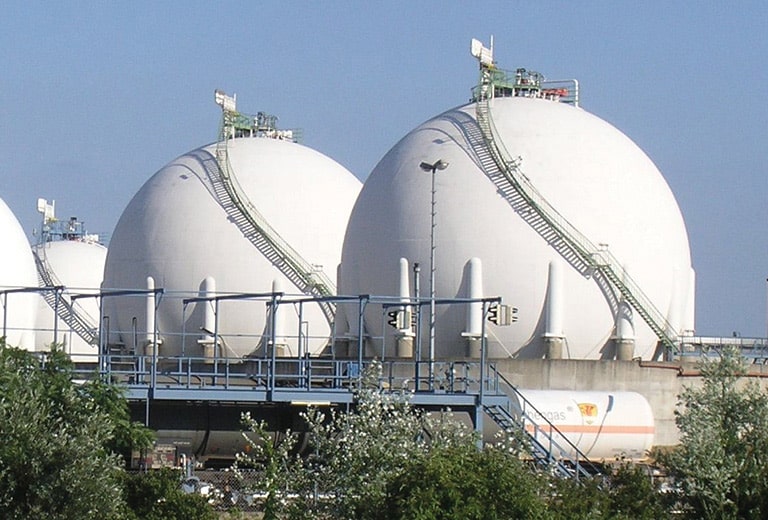

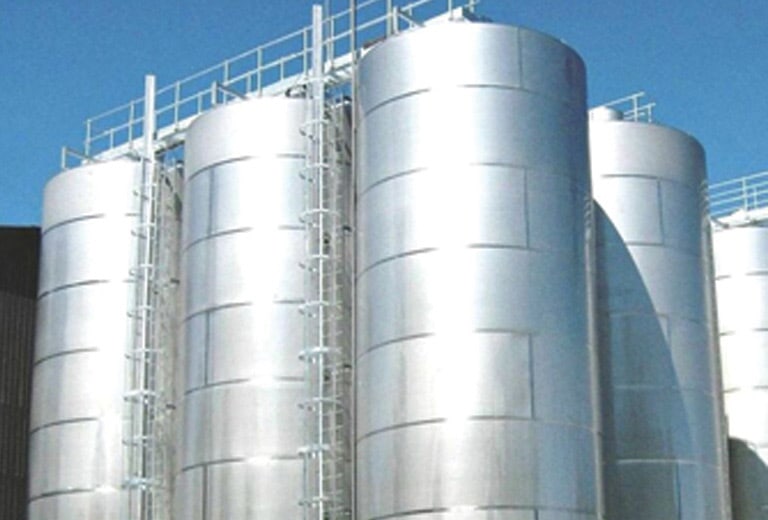

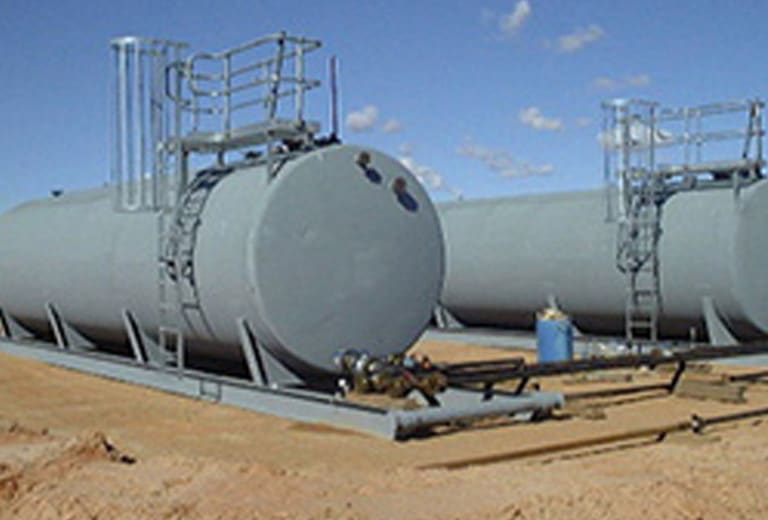

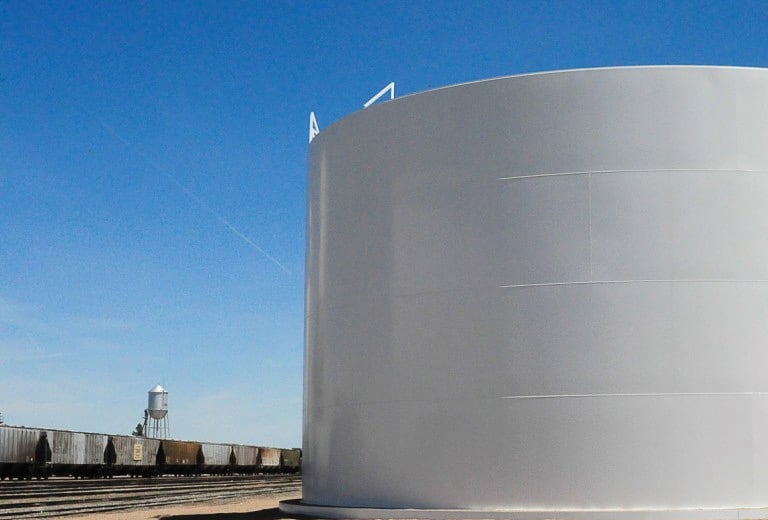

REINFORCEKIT® PATCH suitable for all tank designs & sizes
| Use | TANK REINFORCEMENT – ONSHORE & OFFSHORE |
| Service temperature | -50°C / +150°C (-58°F / +302°F) |
| Application temperature | +10°C / +130°C (+50°F / +266°F) |
| Maximum tank diameter | No limitation |
| Maximum hole size | No limitation |
| Maximum pressure | No limitation |
Designed as per ISO 24.817 & ASME PCC-2

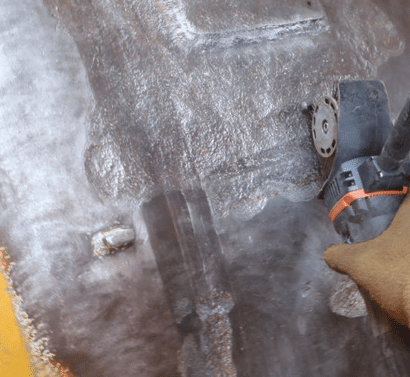

Surface preparation
Sa2½ / St3 and roughness Rz > 60 µm

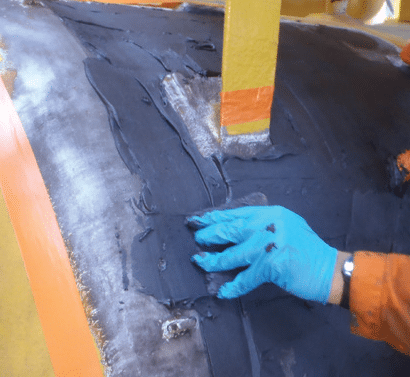

3X filler application

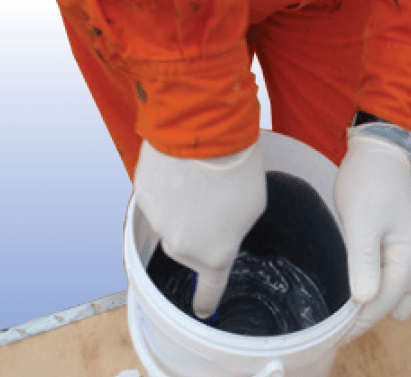

3X bi-component epoxy resin preparation

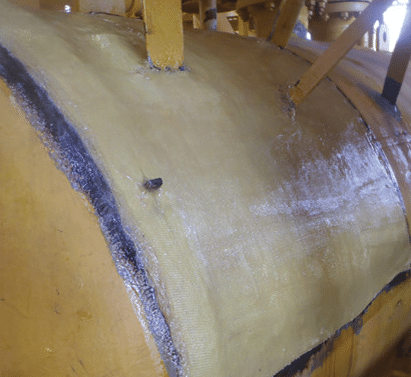

Kevlar® patching with 3X resin application

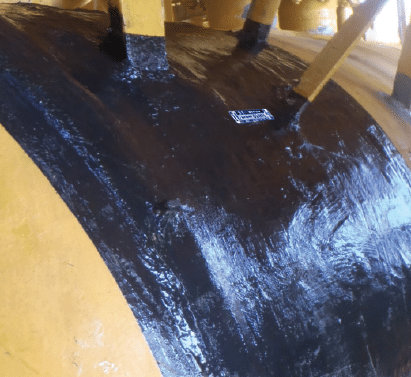

Final protection and traceability tag
INSTALLATION BY TRAINED AND CERTIFIED APPLICATORS ONLY
